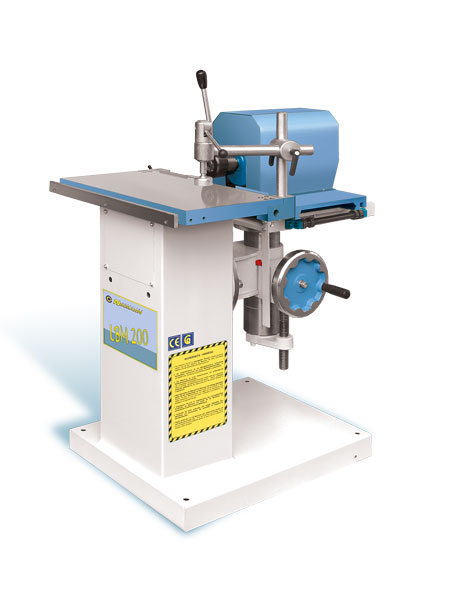

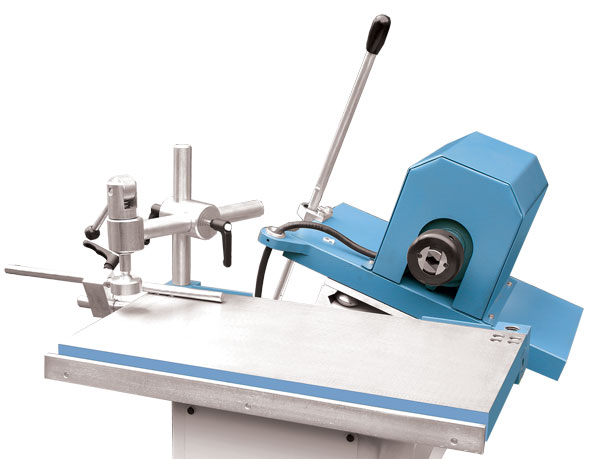

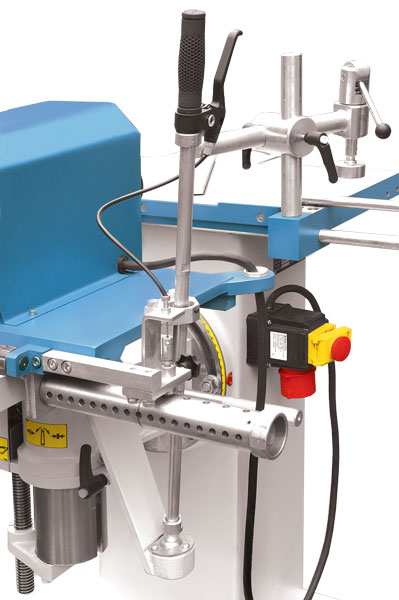

Serial machine with 1 piece eccentric clamp and schalter for motor protecting. Fixing of the length and depth of drilling. Support rod for serial production. Tilting of the boring head. Chuck Westcott 0-20 with protective cover. Easy adjustment by height through handwheel. Easy moving of the boring head through only one lever.

STANDART PERFORMANCE	LBM 200
Working table dimensions, mm	600 x 320
Height of the working table, mm	870
Longitudinal motion of table, mm	245
Transversal motion of table, mm	205
Vertical motion of the table, mm	165
Tilting of the boring head	45° - 90° - 45°
Revolutions, min -1	2840
Motor power, kW (HP)	2.2 (3.0)
Weight, kg	180

OPTIONS
2 speeds motor, kW	2.4 / 3.0
4 size rotor group with fixed positions at 16-22-25-32 mm

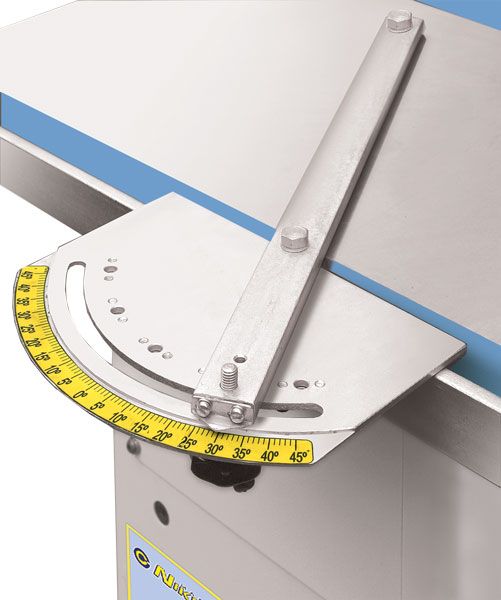

Miter fence
Extension of the table
Wheel set
