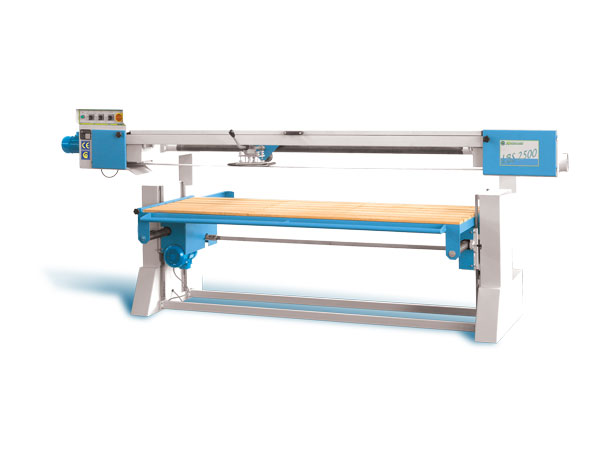

  BELT GRINDING MACHINE
Two belt feeding speeds with possibility for direction variation. Dynamic balanced pulleys. Mechanical table lifting. Aspiration system with protector with possibility for inserting to another aspiration system.
|
STANDART PERFORMANCE |
LBS 2500 |
LBS 3000 |
|
|
|
|
|
Working table dimensions, mm |
2500 x 820 |
3000 x 820 |
|
Table vertical movement, mm |
600 |
600 |
|
Belt length, min/max, mm. |
7000 / 7320 |
8005 / 8355 |
|
Belt width, mm |
150 |
150 |
|
Bend depth, mm |
600 |
600 |
|
Bend height, mm |
210 |
210 |
|
Pulleys diameter, mm |
Ø 240 |
Ø 240 |
|
Belt feeding speed with possibility for direction variation, m/s |
18 / 36 |
18 / 36 |
|
Main motor (2-speed), kW (HP) |
2.4 / 3.0 (3.3 / 4.1) |
2.4 / 3.0 (3.3 / 4.1) |
|
Table lifting motor, kW (HP) |
0.55 (0.75) |
0.55 (0.75) |
|
Aspirating motor, kW (HP) |
0.55 (0.75) |
0.55 (0.75) |
|
Overall dimensions – L x W x H, mm |
4200x1600x1500 |
4700x3100x1500 |
|
Weight, kg |
480 |
510 |
|
OPTIONS |
|
|
|
|
|
Manual table lifting |
| |
